Retail Showroom of Home Automation Technology

Car Audio & Security are the UK's largest independent car electronics retailer with over 20 years experience selling on-line and instore. They offer full on-site installation facilities in their workshop.


Modal AV were contacted by car audio security to assist with the design and installation of their new 3,000 square feet of workshop and demonstration facilities. The brief was to make the day to day operation of the premises as streamlined as possible which meant automating as many elements as possible.

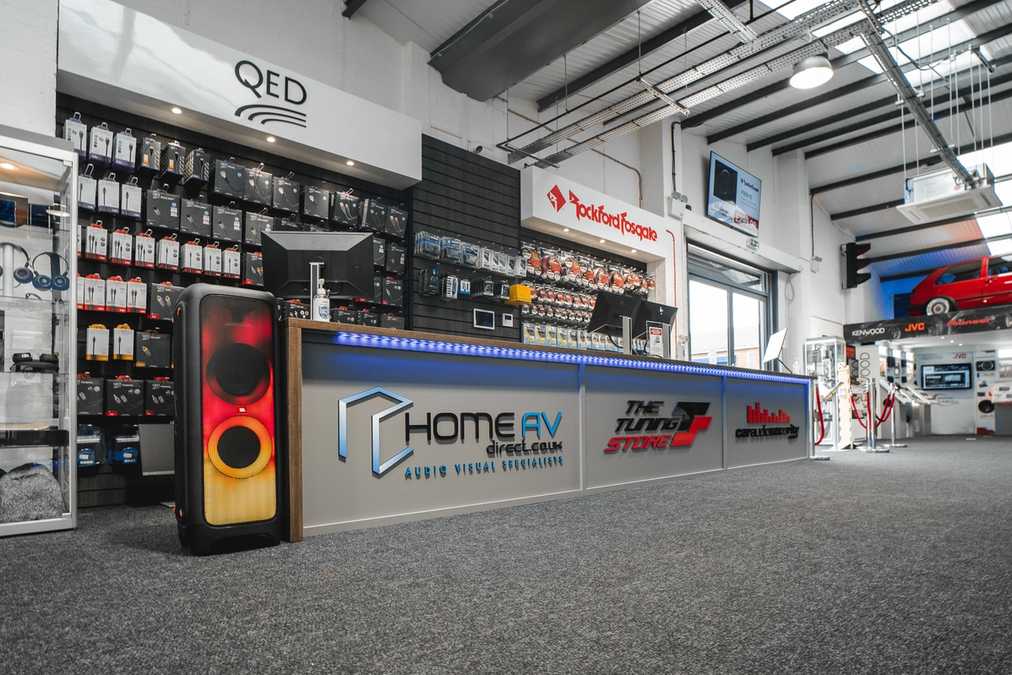

Home Direct AV store with Control4 home automation system installed by Modal AV

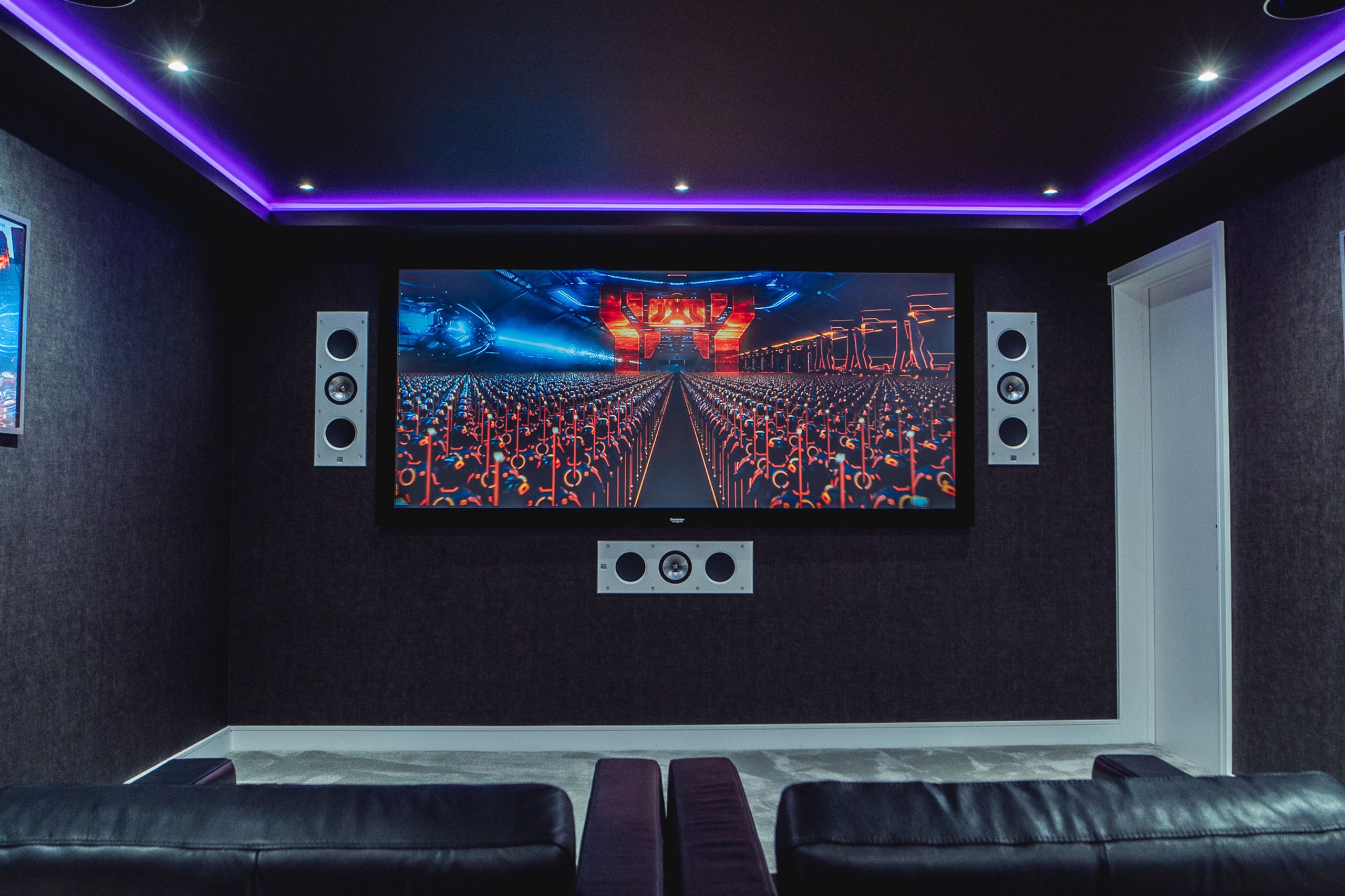

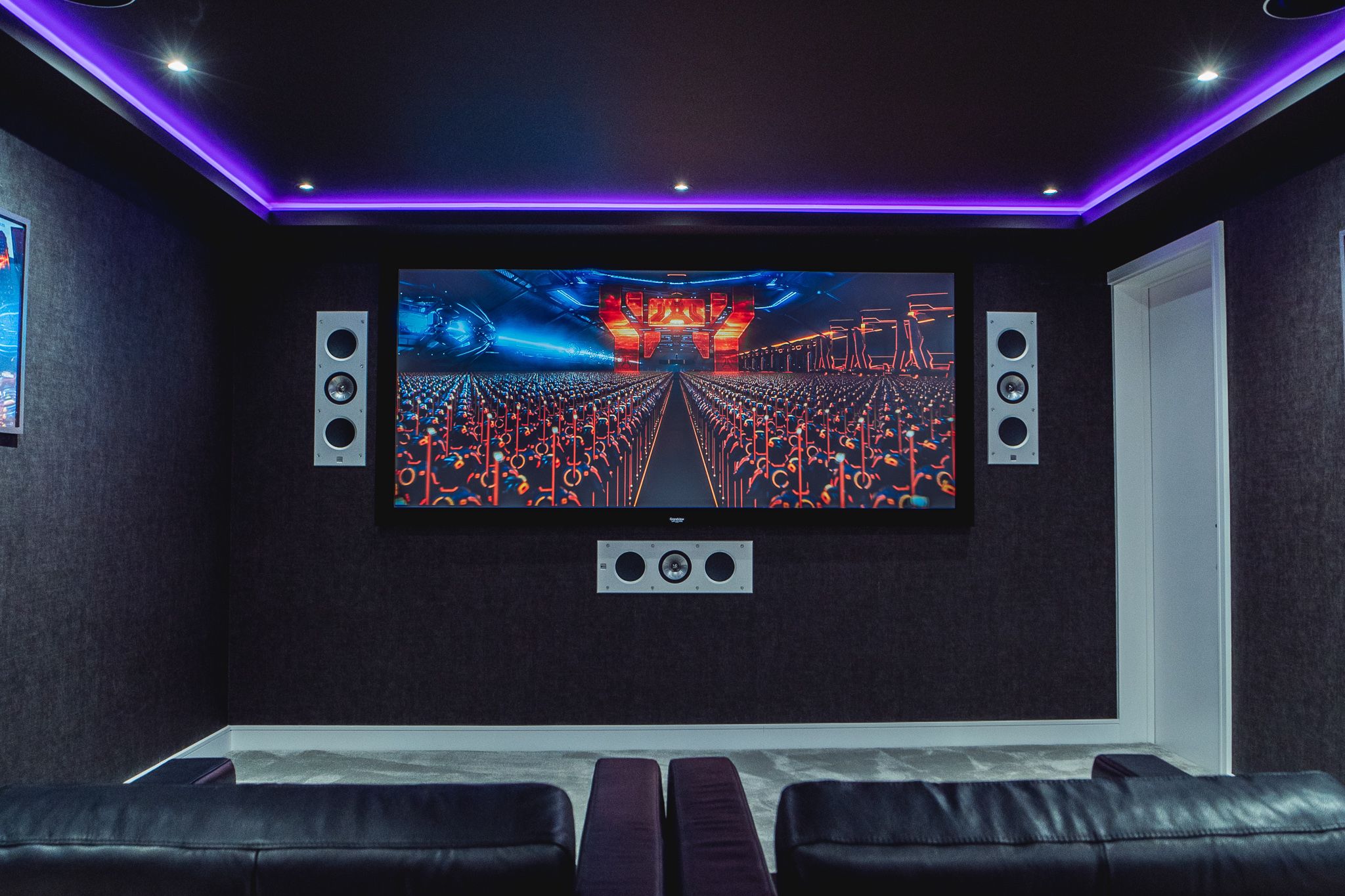

Demo home cinema room installed by Modal AV

KEY ELEMENTS

  • Control4 automation system with multiple in wall touch screens, handheld remotes and iOS/Android apps for day to day building management (BMS)

  • Control4 centralised lighting with Phillips HUE integration and multiple RGB DMX LED circuits along with external security flood lights

  • Sony 4K HDR Projection

  • KEF THX Dolby Atmos cinema demo facility

  • Arcam Dolby Atmos pre amplifier & power amplifier

  • Zoned climate control with full integration into Control4

  • Security shutters with timed access for day to day operation

  • Structured cabling design & termination

  • Managed wired and robust Wi-Fi network

  • Large 4k Hikvision CCTV system with number plate recognition and Pant tilt zoom

Lighting the way

Modal AV provided a centralised Control4 lighting system that controls over 40 lighting circuits throughout the office spaces, shop floors and demo rooms. Control of the lighting is scheduled via Control4s astronomical time clock, this means as staff begin to arrive Monday through to Saturday at 8AM lights in the warehouses and stock areas will switch on followed by lights in the offices at 9.30AM. Electronic security shutters for these areas also follow suit, not only is this energy efficient it also acts as a secure way of keeping staff to their designated areas. Full RGB DMX colour control is delivered via custom LED tape along with Phillips HUE integration, all operated from touch screens using Control4’s easy to use colour wheel system.

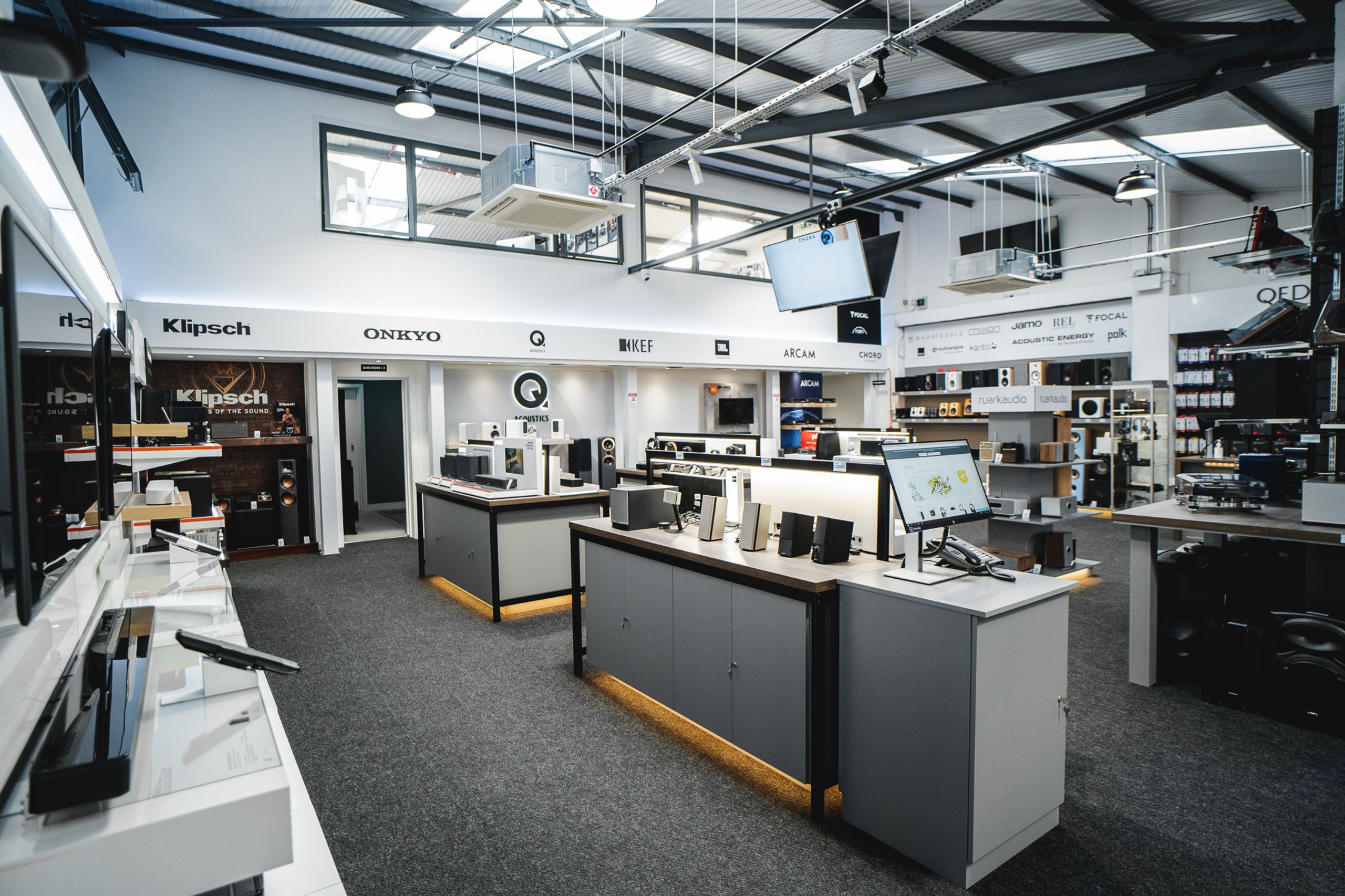

Automated smart lighting control in store controls over 40 lighting circuits

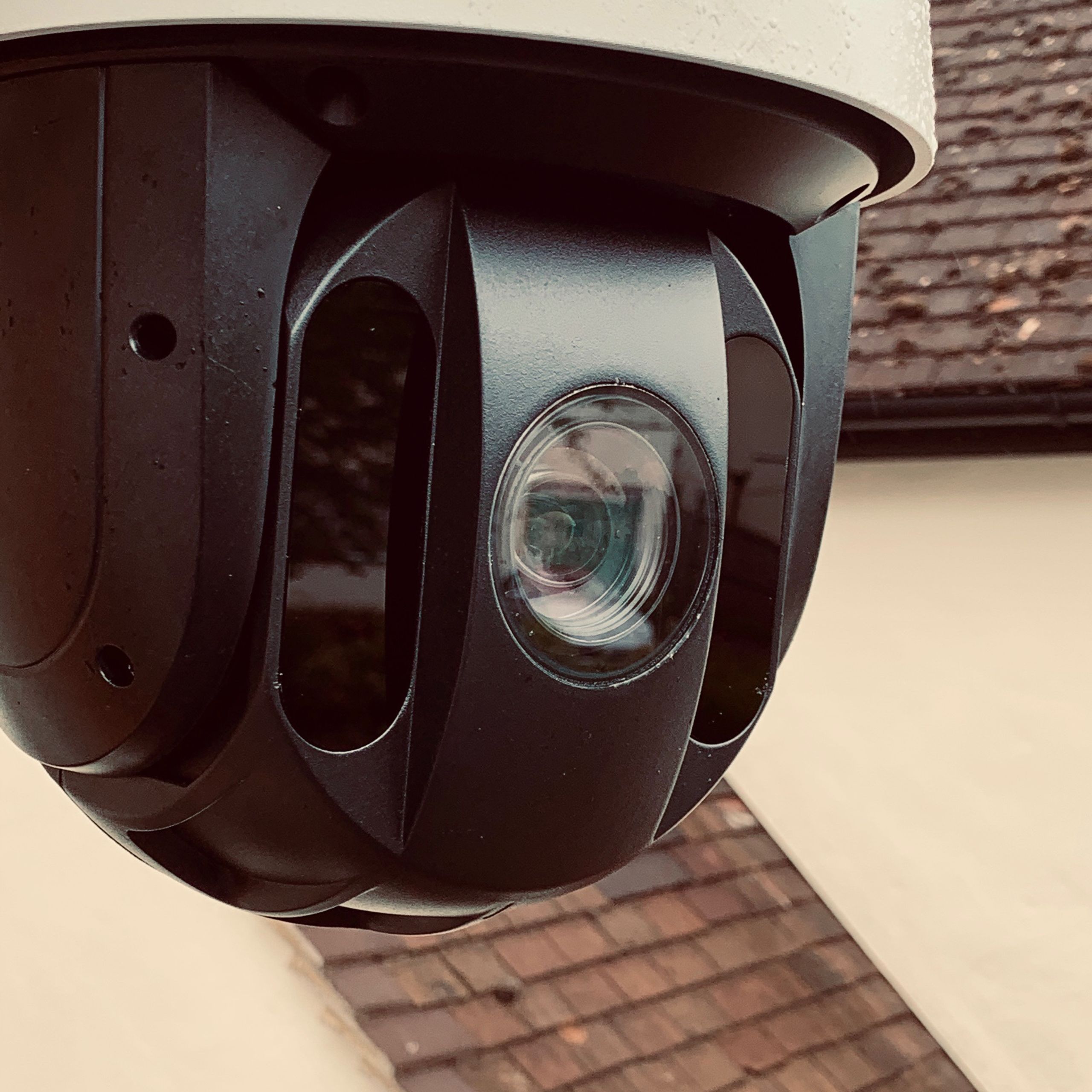

Security camera integrated to Control4 home automation

Security matters

With large levels of stock kept on site, a firm request was to protect the building in the best ways possible. Modal AV installed over 50 static, plus PTZ (pan, tilt and zoom) Hikvision cameras with intelligent video analytics. Once the building is alarmed the CCTV is monitored 24/7 by a specialist surveillance centre who also have access to a PA system discreetly installed around the building. Should an intruder gain access to the grounds the surveillance centre can swiftly announce the intruder is being watched, dramatically reducing the chances of any attempts to enter the property.

Robust Network

The core of network equipment is housed within a dedicated plant room. A large managed wired network infrastructure was commissioned using Unifi layer 3 managed POE network switches and superfast WIFI access points. Due to the large number of staff throughout multiple offices the network had to be able to handle hundreds of wired and Wi-Fi connections.


The showroom facilities also heavily rely on the network to allow streaming and product demonstrations to customers. A dedicated fibre line provides the incoming internet connection, with a backup phone line providing redundancy. All cables and equipment are labelled and logged within our tracking systems, allowing ease of future maintenance and upgrades.


A Domotz monitoring platform was also installed to give our dedicated support engineers access to monitor and maintain the systems installed. Our teams are able to remotely diagnose and fix issues before or when they arise and carry out crucial software updates.

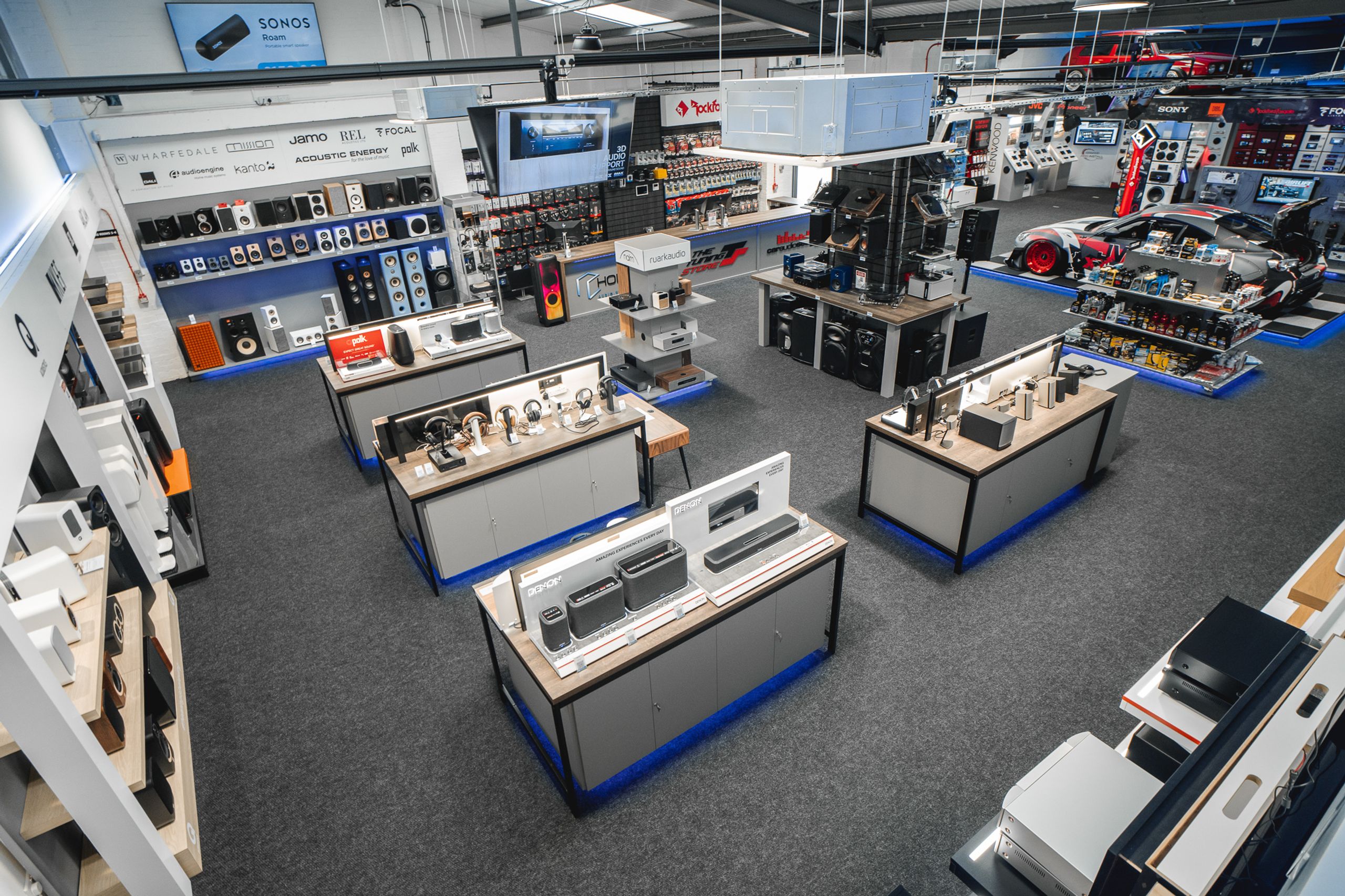

Managed Wi-Fi network for sales and back room staff throughout the store
Zones heating and AC cooling integrated into the Control4 building management

Efficient heating

Zoned heating control is essential for a building of this size as this avoids energy wastage in areas that are not occupied. There are over 20 Panasonic air condensers providing heating and cooling which are all independently controllable and programmable via Control4 touch screens but also operate via schedules within Control4.

Future proof demo rooms

KEF and Arcam were specified to provide a Dolby Atmos 7.2.2 configuration to rival and exceed the finest cinema experience. KEF THX reference in-wall speakers were used with Dolby Atmos decoding handled by an Arcam processor and amplification. ARC room correction fine tunes the audio to perfection. Cinema demo room equipment is displayed within a Middle Atlantic rack built off-site and installed by Modal AV; this allows potential customers a view into how the systems can be installed and centralised within their home.

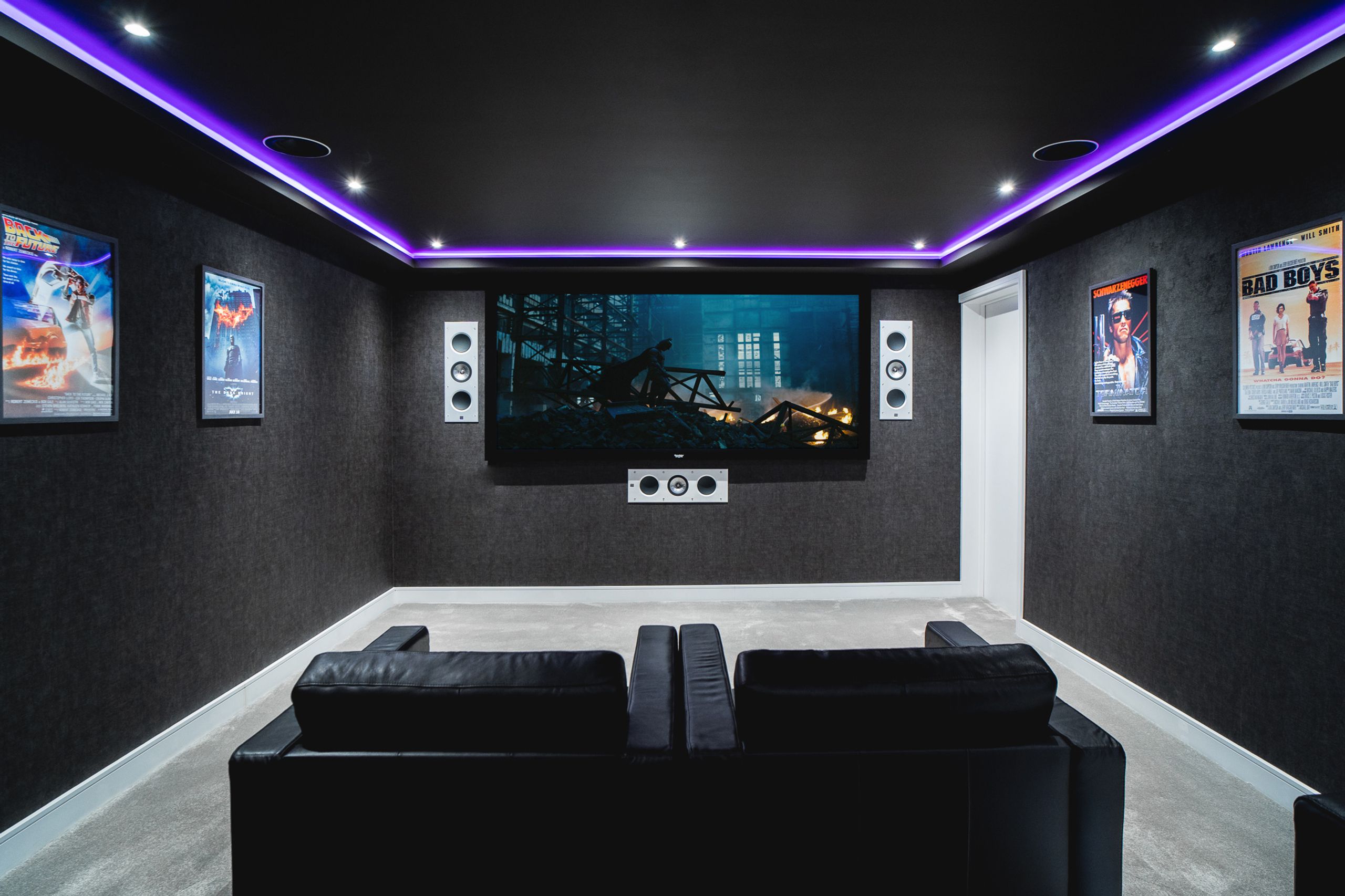

KEF THX reference in-wall speakers were used to create the Dolby Atmos 7.2.2 immersive surround sound
Demo facility with 4k video and Dolby Atmos surround sound installed by Modal AV

Ultimate visuals

A Sony 4K laser projector projects a vibrant and detailed image onto a Grandview 16:9 ratio screen. An Apple TV provides fast and easy access to content and streaming services as well as a BluRay and Playstation 5.

Control at your fingertips

Throughout the building a Control4 home automation system gives the user; be it a potential customer or member of staff an intuitive easy-to-use experience. The in-wall touch screens provide controls to all the necessary items such as lighting scenes, heating and cooling and full DMX colour control of lighting in all areas.

Retail store with Control4 control and automation system by Modal AV
